Product details:

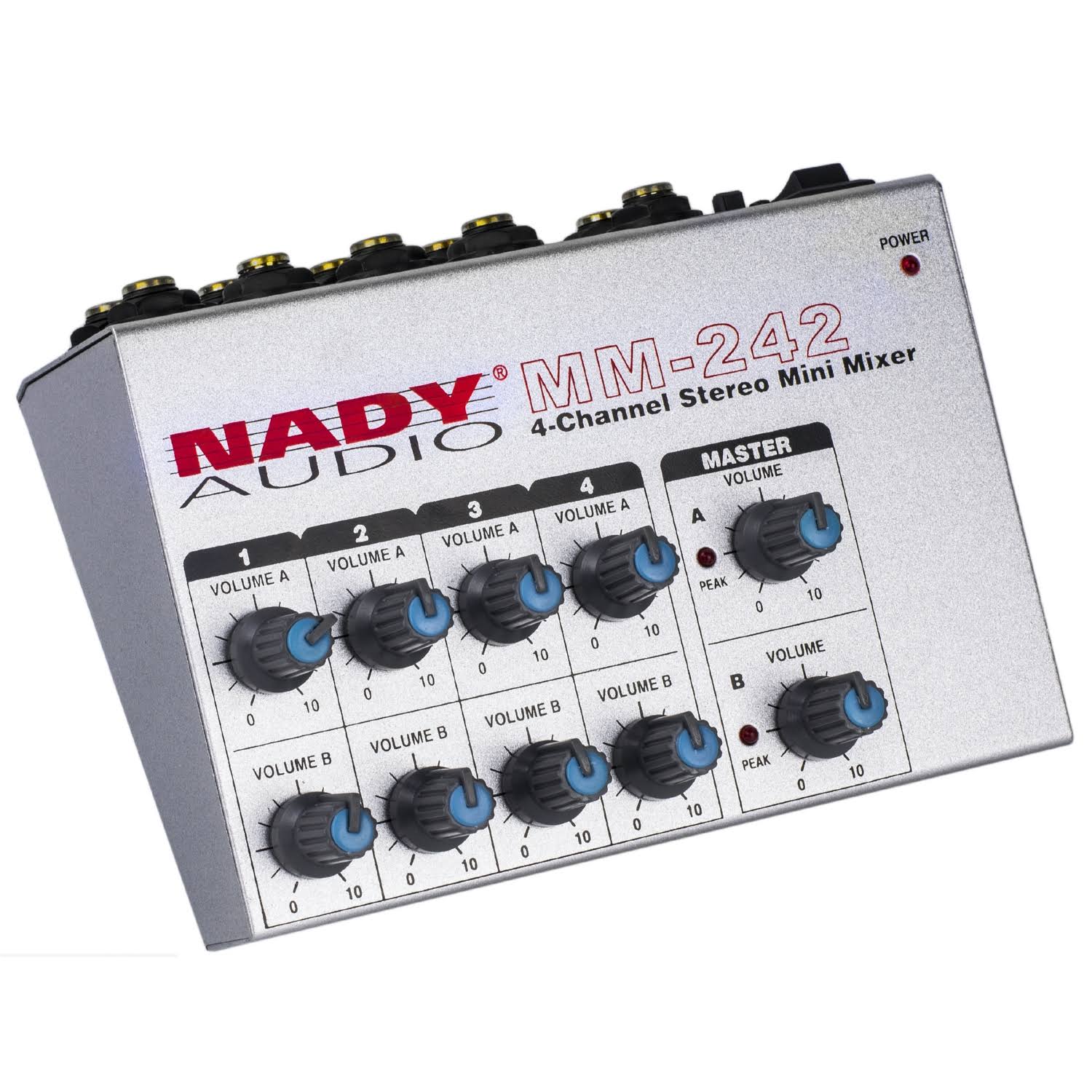

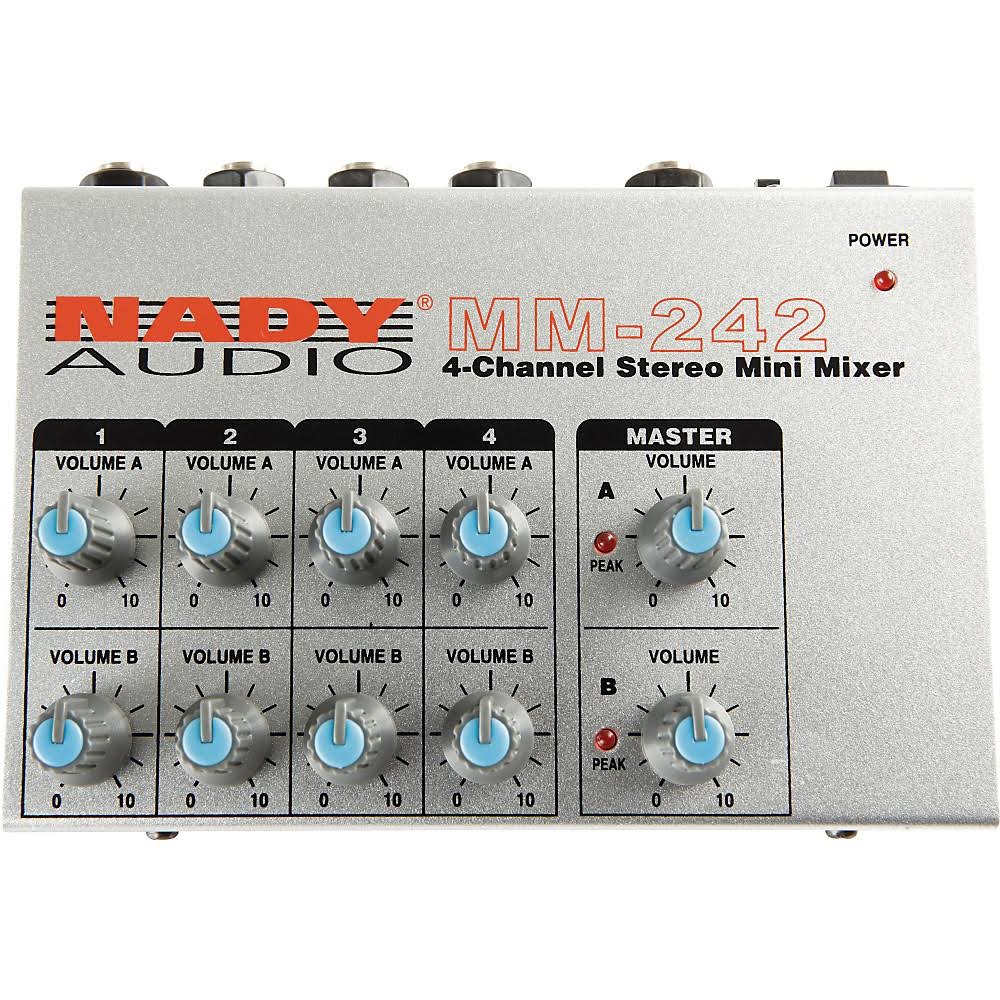

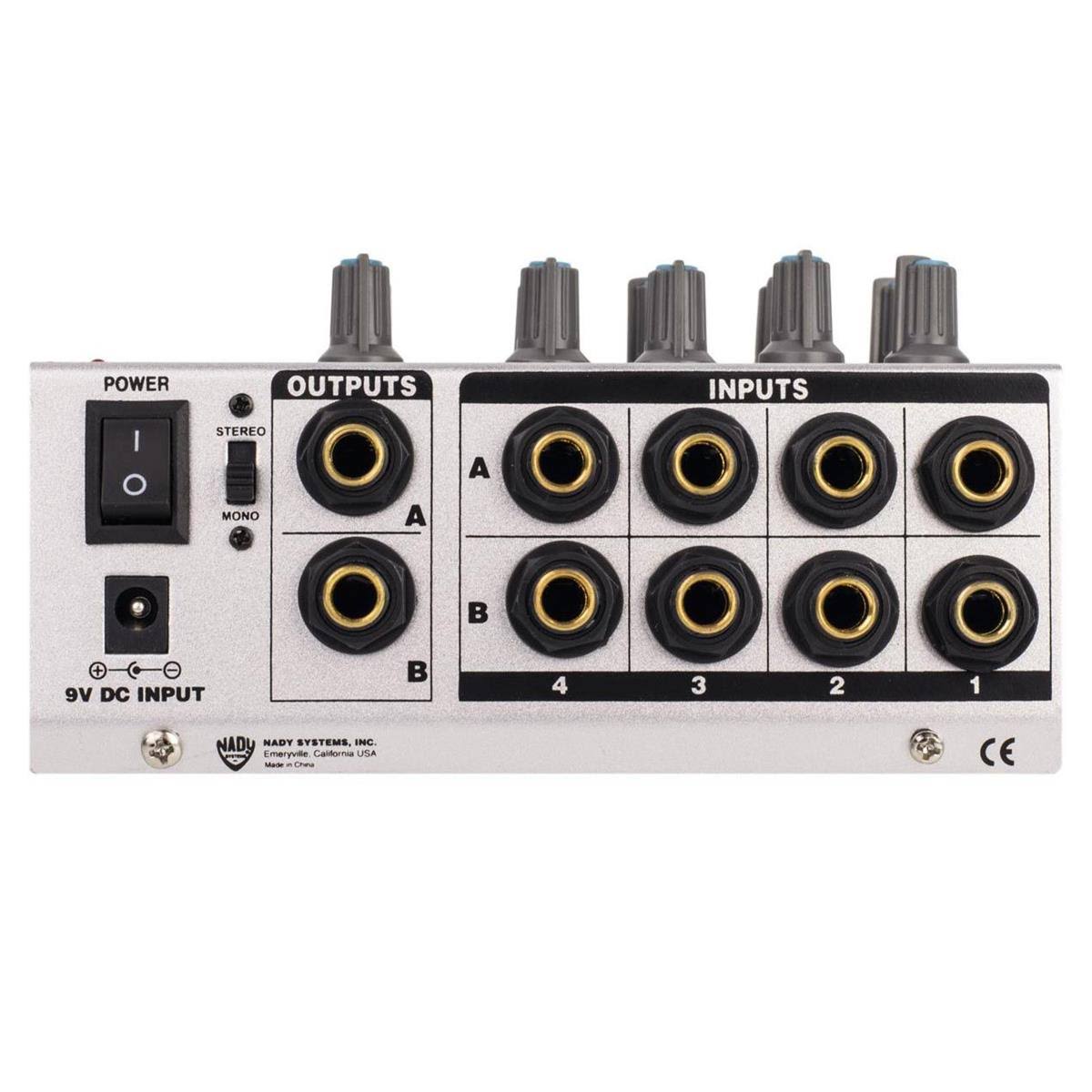

The Nady MM-242 is a line-level mixer capable of handling eight unbalanced mono inputs or four unbalanced stereo inputs in stereo pairs. At 5.8 x 4.3 x 2.1", the unit provides a compact and durable design, constructed as it is out of heavy-duty steel, and boasting smooth-turn, stable pots. The device offers eight 1/4" line inputs, which can be assigned to the 1/4" stereo A/B outputs, or summed together and sent to the A and B outputs simultaneously. A mono/stereo selector switch determines the operating mode. Individual level controls are provided for each input channel, and each output has its own master volume control. Peak LEDs provide status info at a glance. The mixer delivers high-quality audio with over 25 dB of gain, low distortion, a high signal-to-noise ratio, and 20 Hz to 30 kHz frequency response to deliver your audio in crisp detail. The rear panel has a power switch with an LED indicator, and the mixer can operate on a 9V battery or via an optional external AC/DC adapter for versatility.
- Eight mono 0.6cm inputs with individual volume controls
- Stereo 0.6cm balanced TRS master outputs with master volume controls
- Up to 25dB of gain
- S/N ratio of 85dB
- Frequency response: 10Hz to 100kHz
- Mono/stereo mode selector switch
- Power on/off switch with LED indicator
- Four-channel stereo mixer runs on 9V battery or optional power supply
